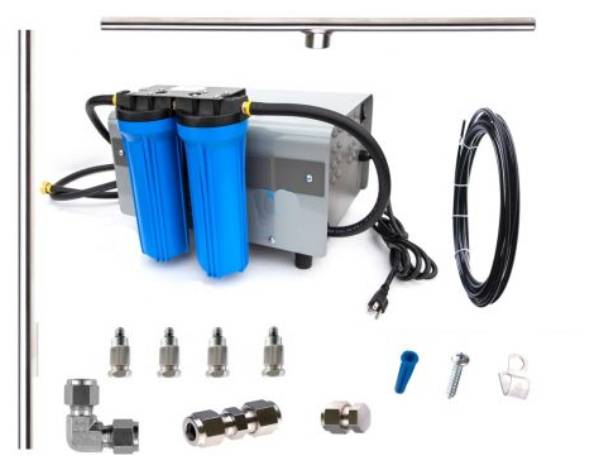

High Pressure Misting System (1000 PSI) – Stainless Steel Tubing
Starting at: $1,850.00
A Stainless Steel high pressure misting system (1000psi) from Advanced Misting Systems can reduce the temperature of your outdoor area by 30 degrees! The biggest advantage a high pressure misting system has over a low (150psi) or mid (300psi) pressure system is that the 1000psi pump produces a water droplet that is much smaller, a smaller water droplet means the evaporation is quicker, and this equals a lower temperature drop!
Our high pressure misting systems are premium quality and include all the parts and fittings needed for installation (see full parts lists below). Our 1000 psi misting kits are designed for easy installation, the average DIYer should have no problems with installation.
WHAT PUMP & LENGTH DO I NEED?
A big advantage of buying from Advanced Misting Systems is our experience, owner Mike has 20+ years experience with misting systems – if you have any questions don’t hesitate to call us at 760-779-1352. The steps listed below should be enough information for you to make the necessary choices to configure and purchase your high pressure misting system.
SELECT PUMP TYPE
Direct Drive: This pump is the most cost-effective, and it gets the job done for just about every application.
Enclosed Direct Drive: This is the same pump as the Direct Drive in an enclosing. This offers more protection and is quieter.
Pulley: This misting pump is high quality and very quiet.
MEASURE LENGTH
Measure the open outside perimeter of the patio or structure you want to cool with a misting system. You do not need to add the measurement from where your pump will be located to where you want to start your mist as our kits will include a 50 ft roll of nylon tubing. You may want to add roughly 10% for good measuring. So, the total of the area of where you want to mist will be your length you will choose. In general, mist line should be mounted to lower, outside edge of patio fascia with nozzles facing outwards at an angle of 20-45 degrees.

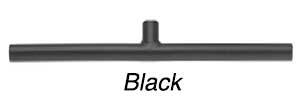

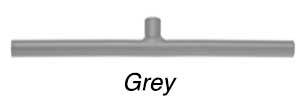

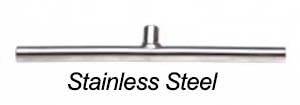

STAINLESS STEEL COLOR OPTIONS

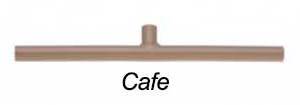

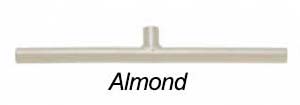

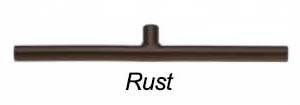

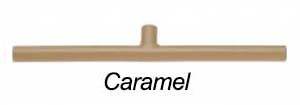

The powder coating color options are available for stainless steel only. There are 5 powder coated color options: Almond (off-white), Caramel (light brown), Cafe (medium brown) and Rust (dark brown/red).
Please Note: Stainless steel fittings that are included in these kits are not powder coated. We do have available touch up paint in all powder coated colors that can be purchased separately.
The color options are an additional cost – when you choose from the Stainless Color option above, the price will automatically be adjusted.
You must be logged in to post a review.
What Parts are Included?
All of our mid pressure misting kits come with a 300PSI enclosed misting pump, 50 feet of nylon manifold line, 3 elbows and 1 anchor kit. All other parts will depend on the length and tubing type, see below for specific parts list for our stainless tubing kits.
Length | 8 Ft. Stainless Steel Lines | Misting Nozzles | Stainless Steel Unions | Stainless Steel Endcaps | Stainless Steel Elbows | 8 Ft. Blank Stainless Steel Tubes | Clamps | 50 Ft. Nylon Tube Roll |
---|---|---|---|---|---|---|---|---|
16 | 2 | 8 | 3 | 1 | 3 | 1 | 25 | 1 |
24 | 3 | 12 | 3 | 1 | 3 | 1 | 25 | 1 |
32 | 4 | 16 | 4 | 1 | 3 | 1 | 25 | 1 |
40 | 5 | 20 | 5 | 1 | 3 | 1 | 30 | 1 |
48 | 6 | 24 | 6 | 1 | 3 | 1 | 35 | 1 |
56 | 7 | 28 | 7 | 1 | 3 | 1 | 35 | 1 |
64 | 8 | 32 | 8 | 1 | 3 | 1 | 45 | 1 |
72 | 9 | 36 | 9 | 1 | 3 | 1 | 45 | 1 |
80 | 10 | 40 | 10 | 1 | 3 | 1 | 56 | 1 |
88 | 11 | 44 | 11 | 1 | 3 | 1 | 54 | 1 |
96 | 12 | 48 | 12 | 1 | 3 | 1 | 58 | 1 |
Nozzle and Motor Chart
*Pump GPM is configured by how many nozzles you are running and the orifice size of the nozzles. Take your length (linear footage) divide by 2 which will then equal how many nozzles. See below chart to determine your pump GPM.
Pump | 0.008 Nozzles- Humid Climate | 0.012 Nozzles- Dry Climate | 0.014 Nozzles | Power | Motor |
---|---|---|---|---|---|
1/3 GPM | 7-15 | 5-10 | 4-8 | 120 Volt 60Hz 8.4 Amps | 3/4 HP Motor 1725 RPM |
1/2 GPM | 11-25 | 8-18 | 7-15 | 120 Volt 60Hz 8.4 Amps | 3/4 HP Motor 1725 RPM |
1 GPM | 25-50 | 17-35 | 15-31 | 120 Volt 60Hz 8.4 Amps | 3/4 HP Motor 1725 RPM |
1.5 GPM | 37-75 | 26-53 | 23-47 | 120 Volt 60Hz 14 Amps | 1.5 HP Motor |
2.1 GPM | 50-100 | 37-75 | 23-47 | 120 Volt 60Hz 15 Amps | 1.5 HP Motor 1725 |
2.9 GPM | 72-145 | 52-104 | 45-90 | 220 Volt 60Hz 10 Amps | 2 HP Motor |
You may also like…
-
Heavy Duty Stainless End Cap
Starting at: $9.03 Select options -
Heavy Duty Replacement Brass Compression Nut
Starting at: $1.42 Select options -

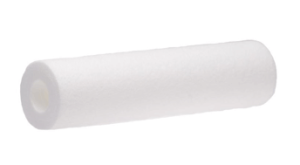

Filter Element 10”1 Micron & 5 Micron
$7.99 Select options -
Ecosmart Scale Control Filter
$119.99 Add to cart -
Heavy Duty Stainless Nut & Ferrule Set
Starting at: $5.88 Select options -
High Pressure Stainless Steel, Hex, Anti-Drip Nozzle 10/24
$8.25 Select options -
Heavy Duty Stainless 45 Degree Elbow 3/8”
$22.40 Add to cart -

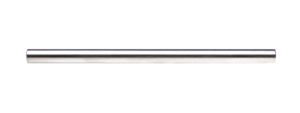

3/8″ High Pressure Stainless Steel Rigid Blank Tubing – 8ft
